Revil Walkthrough - CyberDefenders Labs

Oct 16, 2025 · in threat-hunting

Cyber-Defenders Splunk

Scenario

You are a Threat Hunter working for a cybersecurity consulting firm. One of your clients has been recently affected by a ransomware attack that caused the encryption of multiple of their employees’ machines. The affected users have reported encountering a ransom note on their desktop and a changed desktop background. You are tasked with using Splunk SIEM containing Sysmon event logs of one of the encrypted machines to extract as much information as possible.

Walkthrough

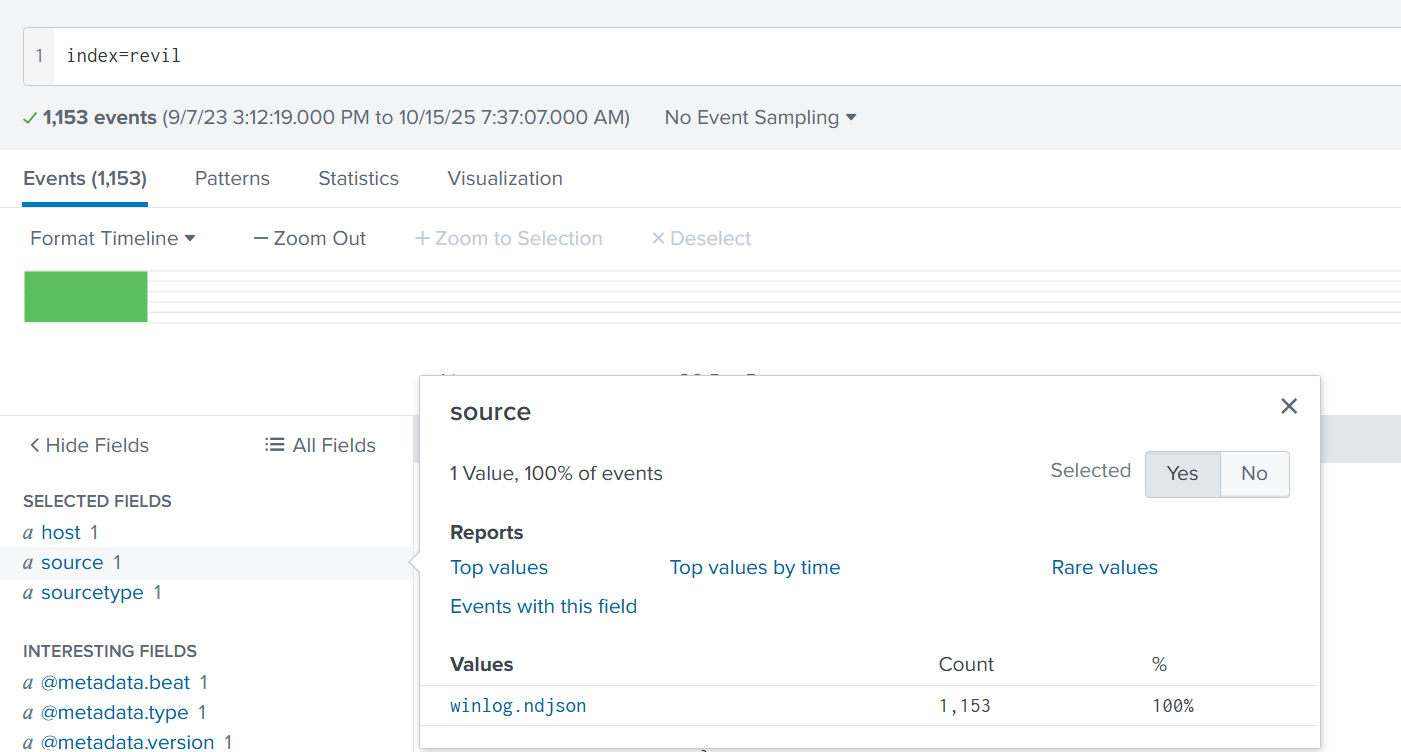

There are around 1,153 events captured by the lab SIEM. All events were collected from a single source: winlog.ndjson.

Identifying host environment

From the event metadata I identified the host details:

host.ip   = 192.168.19.129
host.name = win-2fosvi01scf

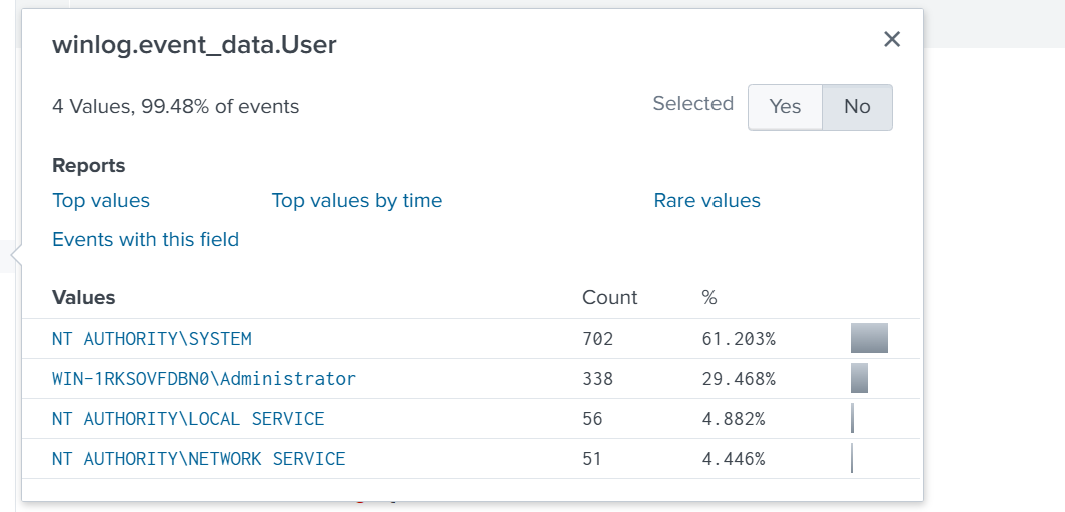

Users on the machine The top accounts that appear in the winlog.event_data.User field are:

Alerts/Rules triggered on the machine

Alerts / Rules triggered on the machine

I enumerated alerts by rule name to understand what detections already fired:

index=Revil
| stats count by winlog.event_data.RuleName

RuleName

Technique ID	Technique Name
T1574.010	Services File Permissions Weakness
T1574.002	DLL Side-Loading
T1571	Non-Standard Port
T1204	User Execution
T1197	BITS
T1083	File and Directory Discovery
T1070.001	Clear Windows Event Logs
T1059.001	PowerShell
T1055.001	Dynamic-link Library Injection
T1055	Process Injection
T1053	Scheduled Task
T1047	Windows Management Instrumentation
T1047	File System Permissions Weakness
T1016	System Network Configuration Discovery
T1053.002	At

Investigation Notes

Since we already have rules triggered on this activity, I started by identifying when the first alert occurred and which rule was the earliest indicator.

index=revil
| table @timestamp, winlog.event_data.RuleName
| sort +@timestamp

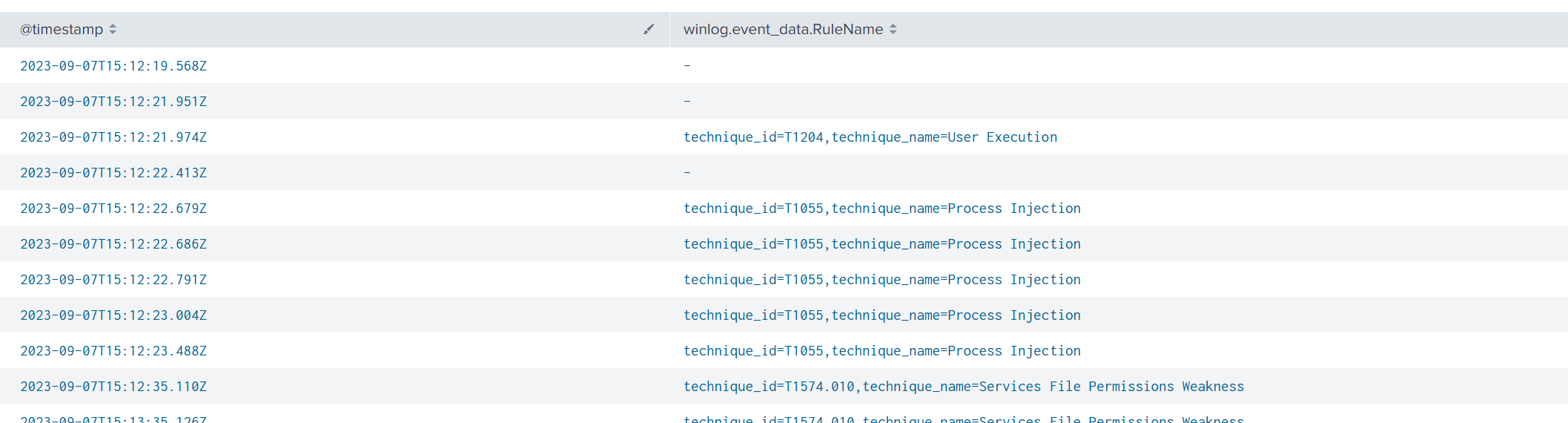

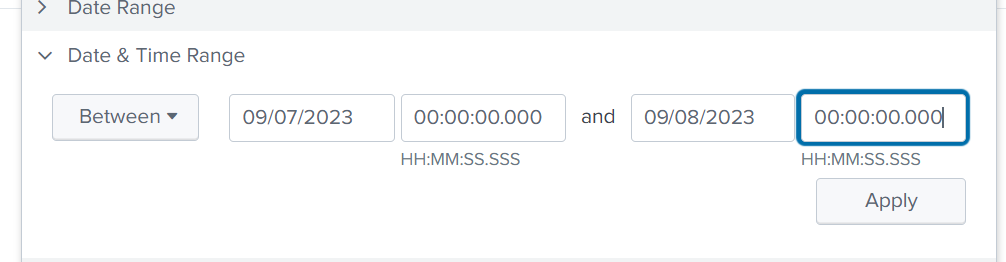

The timeline shows the earliest suspicious activity beginning on 2023-09-07 after 15:00 (UTC). I adjusted the time filter in the SIEM to narrow the window and locate the first IOC.

To focus on genuine suspicious executions, I filtered out common benign or background processes using the following query:

index=revil
| rex field=winlog.event_data.CommandLine "(?<cmd>[^\"']+)"
| where isnotnull(cmd) AND NOT like(cmd, "%Microsoft-Windows%") and NOT like (cmd,"%wevtutil.exe%")
| table @timestamp, winlog.event_data.RuleName, cmd
| sort +@timestamp

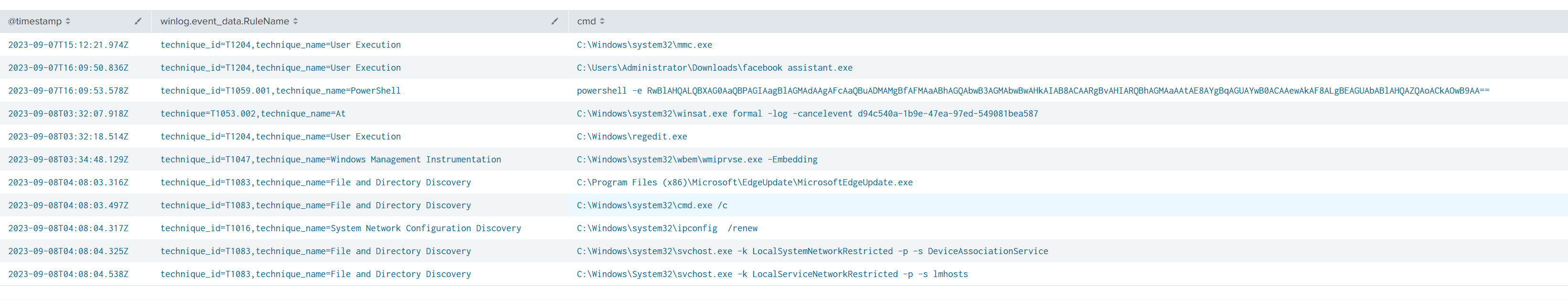

This yielded some interesting file executions, as shown below.

From the above table, “facebook assistant” stood out as a suspicious entry. To investigate further, I decided to enumerate more information about this executable.

Enumerating details about `facebook assistant`

To identify when and where the process executed:

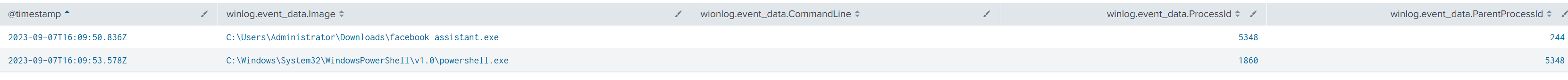

index=revil event.code=1 "facebook assistant.exe"
| table @timestamp, winlog.event_data.Image, wionlog.event_data.CommandLine, winlog.event_data.ProcessId, winlog.event_data.ParentProcessId
| sort @timestamp+

From the query above, we can derive that the PID of facebook assistant.exe is 5348, which later spawned a PowerShell process with PID 1860. Next, I looked for the parent process that launched facebook assistant.exe:

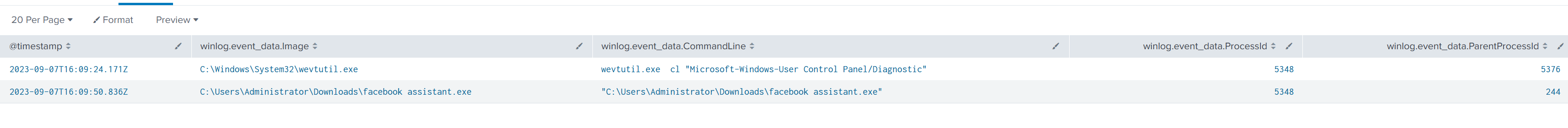

index=revil event.code=1  winlog.event_data.ProcessId="5348"
| table @timestamp, winlog.event_data.Image, winlog.event_data.CommandLine, winlog.event_data.ProcessId, winlog.event_data.ParentProcessId
| sort +@timestamp

As shown, there are two events recorded — each process gets a unique PID when created. Once a process exits, Windows can recycle that PID and assign it to a new one over time.

Fetching child processes of `facebook assistant.exe`

To find all child processes spawned by the same PID (5348):

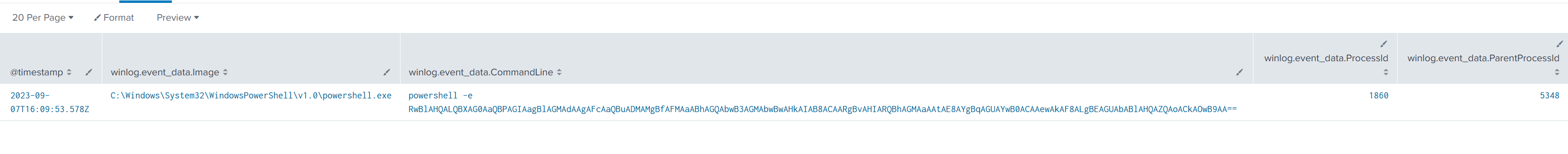

index=revil event.code=1  winlog.event_data.ParentProcessId="5348"
| table @timestamp, winlog.event_data.Image, winlog.event_data.CommandLine, winlog.event_data.ProcessId, winlog.event_data.ParentProcessId
| sort +@timestamp

Decoding the B64 data translates to

Get-WmiObject Win32_Shadowcopy | ForEach-Object {$_.Delete();}

Now that we have the process ID of facebook assistant.exe, I examined which event codes it generated during execution:

EventCode	Event Name	Description
5	Process Terminated	Logs when a process ends (PID termination).
7	Image Loaded	Logs when a process loads a DLL or image file into memory (useful for detecting DLL injection or side-loading).
11	File Create	Logs when a file is created or overwritten by a process.
13	Registry Value Set	Logs when a registry value is modified (used for persistence or configuration changes).

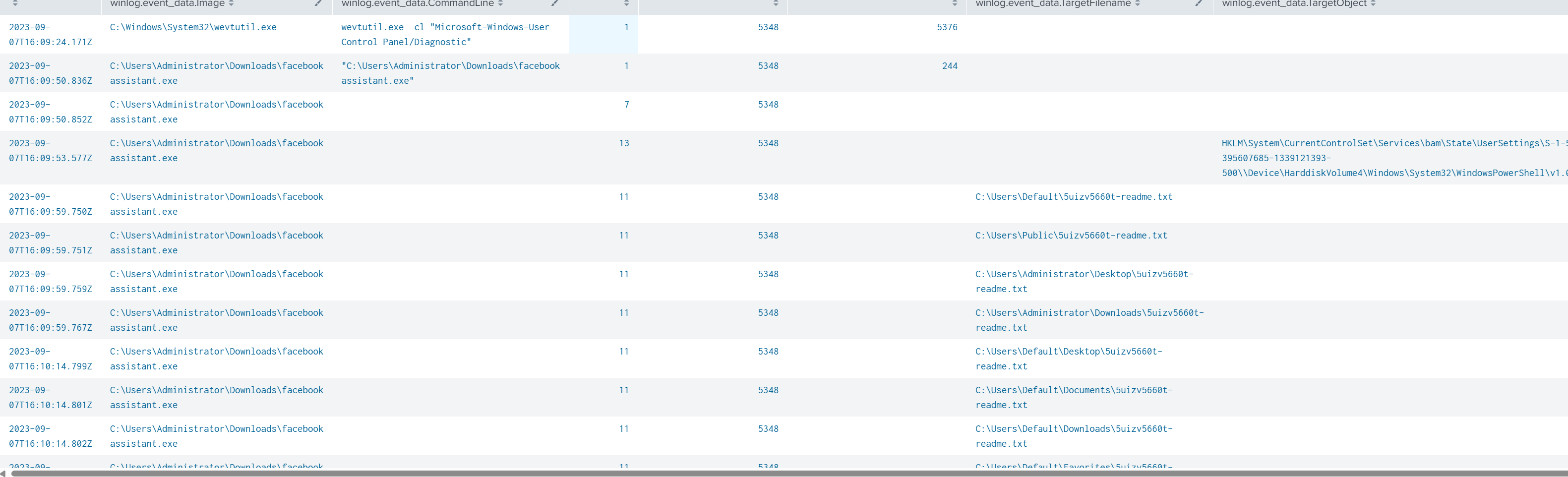

Finally, I projected key telemetry values for process 5348:

index=revil winlog.event_data.ProcessId="5348"
| table @timestamp, winlog.event_data.Image, winlog.event_data.CommandLine, event.code, winlog.event_data.ProcessId, winlog.event_data.ParentProcessId,  winlog.event_data.TargetFilename, winlog.event_data.TargetObject
| sort +@timestamp

The ransomware encrypted multiple files, terminated itself, and spawned a child process that deleted shadow copies.

IOCs

B8D7FB4488C0556385498271AB9FFFD0EB38BB2A330265D9852E3A6288092AA - facebook assistant.exe
