Piggy Walkthrough - BTLO Labs

Jul 10, 2025 · in blue-teaming
BTLO wireshark MITRE forensics

Walkthrough of PIGGY invesigation

PCAP One: SSH Data Exfiltration

Question:
What remote IP address was used to transfer data over SSH? (Format: X.X.X.X — 3 points)
How much data was transferred in total? (Format: XXXX M — 3 points)

PCAP One is quite large—over 1GB in size—so I filtered only the outbound SSH traffic using the Wireshark filter:

tcp.dstport == 22

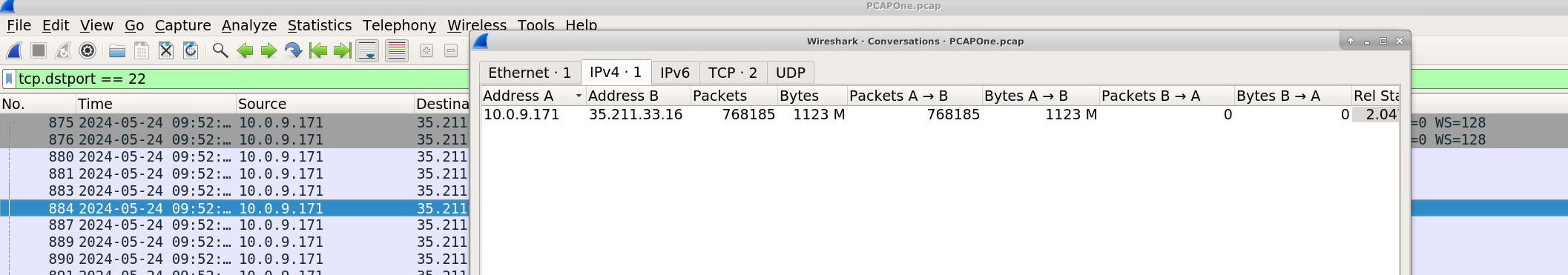

From there, I navigated to Statistics > Conversations, checked “Limit to display filter”, and found the remote IP 35.211.33.16. The total bytes transferred to this IP from the internal machine was approximately 1123M — a clear indicator of potential data exfiltration over SSH.


PCAP Two: OSINT-Based Malware Attribution

Question:
Review the IPs the infected system has communicated with. Perform OSINT searches to identify the malware family tied to this infrastructure. (Format: MalwareName — 3 points)

Here are the IPs observed in the PCAP conversations:

10.0.9.171      ← internal
82.2.64.107
34.110.209.165
188.120.241.27
195.161.41.93
92.53.67.7
31.184.253.37
78.155.206.172

Excluding the internal IP, I started investigating the others using tools like Scamalytics, VirusTotal, and Google.

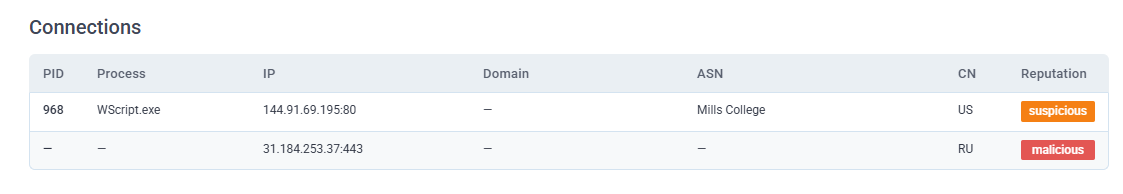

The IP 31.184.253.37 caught my attention. Scamalytics flagged it with a “Medium Risk” reputation, and after digging deeper, I found that it had been associated with Trickbot loader campaigns in the past. image.png

Reference:
Malicious Activity Linked to Trickbot Loader - ANY.RUN

PCAP Three: Unusual Ports & Mining Activity

Question 1:
Review the two IPs communicating on unusual ports. What are the two ASN numbers these IPs belong to? (Format: ASN, ASN — 3 points)

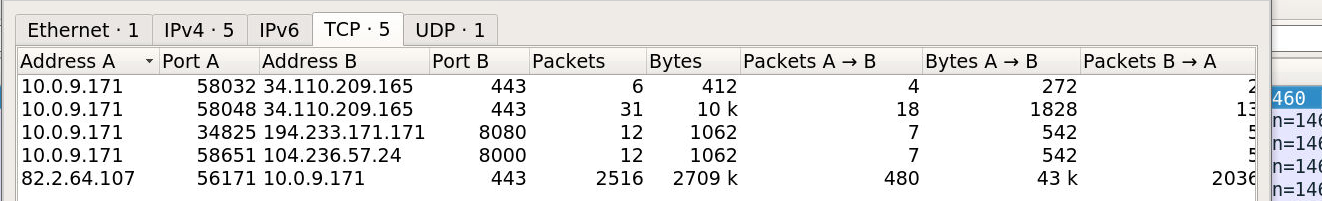

By checking Statistics > Conversations, I identified two suspicious external IPs:

  • 194.233.171.171
  • 104.236.57.24

These stood out due to communication over non-standard ports. Using whois.domaintools.com, I mapped them to the following ASNs:

  • 194.233.171.171 → AS63949
  • 104.236.57.24 → AS14061


Question 2:
What malware category have these IPs been historically linked to? (Format: MalwareType — 3 points)

VirusTotal analysis revealed that both IPs were previously reported as involved in cryptocurrency mining:

Question 3:
What ATT&CK technique is most closely related to this activity? (Format: TXXXX — 3 points)

This behavior corresponds to ATT&CK technique T1496 – Resource Hijacking.

Adversaries may leverage the resources of co-opted systems to complete resource-intensive tasks such as cryptocurrency mining, which may impact system performance and service availability.

PCAP Four: DNS TXT Queries & C2 Communication

Question 1:
Go to View > Time Display Format > Seconds Since Beginning of Capture.
How long into the capture was the first TXT record query made? (Format: X.xxxxxx — 3 points)

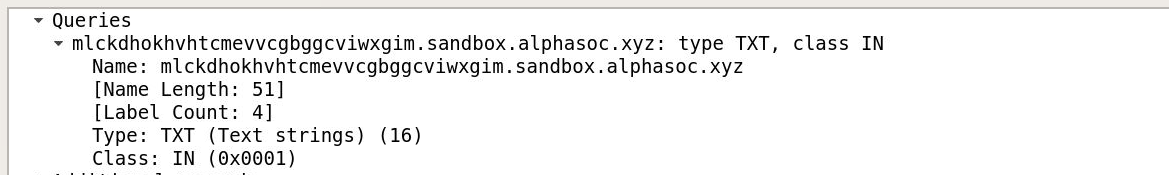

After switching the time format to Seconds Since Beginning of Capture, I applied the display filter:

dns.qry.type == 16

This filter isolates DNS TXT record queries — often used for exfiltration or C2 signaling.

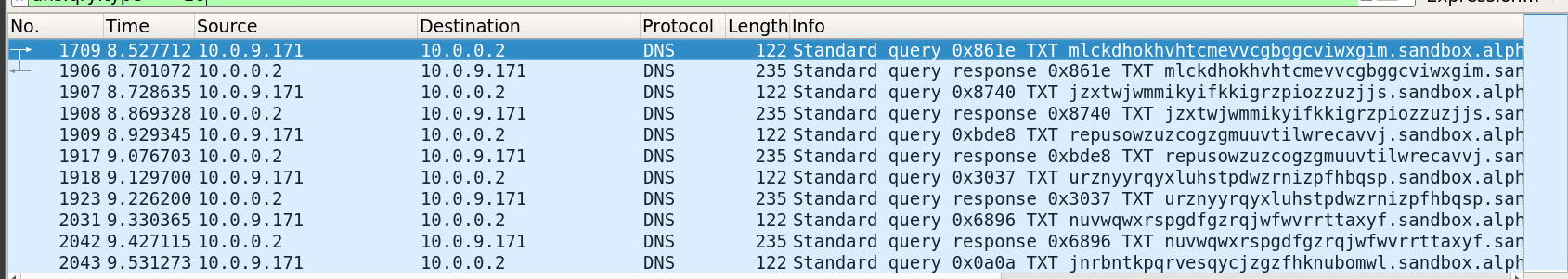

The first TXT request was observed at:

8.527712 seconds


Question 2:
Change the display format to UTC Date and Time of Day.
What is the date and timestamp of the first TXT record? (Format: YYYY-MM-DD HH:MM:SS — 3 points)

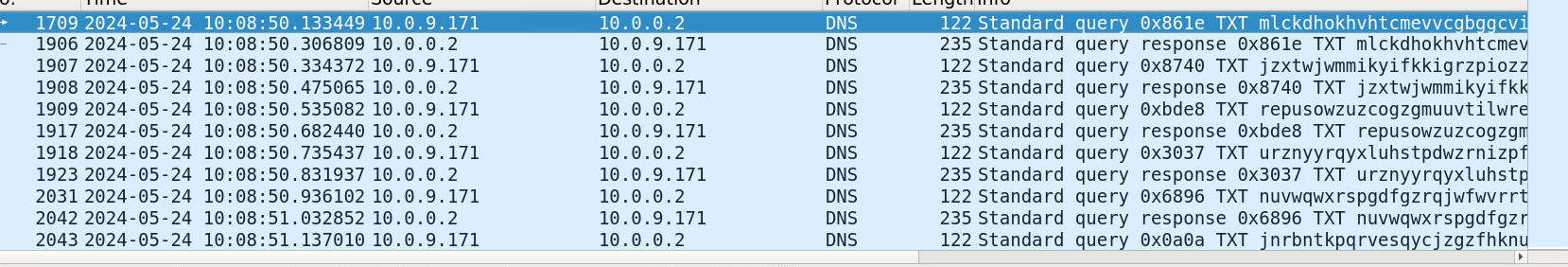

Switching to UTC format clearly shows the time of the first TXT query:

Timestamp:
(Refer to screenshot below)


Question 3:
What is the ATT&CK subtechnique relating to this activity? (Format: TXXXX.xxx — 1 point)

This activity — where the attacker uses DNS TXT records for C2 communication — aligns with:

MITRE ATT&CK:
T1071.004 – Application Layer Protocol: DNS

Adversaries may communicate using application layer protocols such as DNS to bypass traditional network defenses.

🔗 MITRE ATT&CK - T1071.004

Disclaimer

This walkthrough is intended for educational and ethical purposes only. All analysis was performed in a controlled environment using simulated traffic provided by BlueTeam Labs Online.
No part of this content should be used to target or attack real-world systems without proper authorization.
Some investigative steps and insights reference official documentation, threat intel platforms, and community research to ensure accuracy. Full credit goes to the original authors and tool creators.
